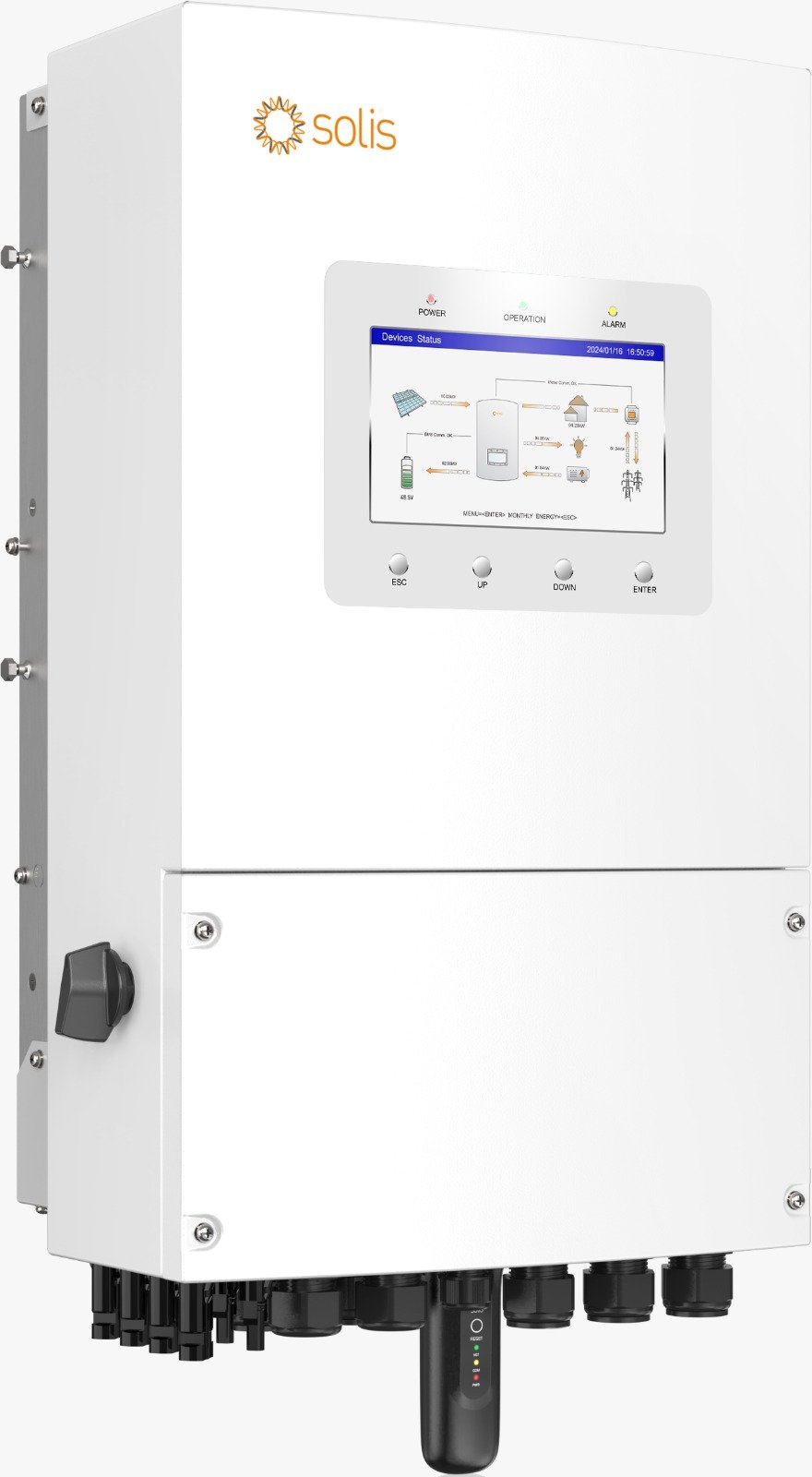

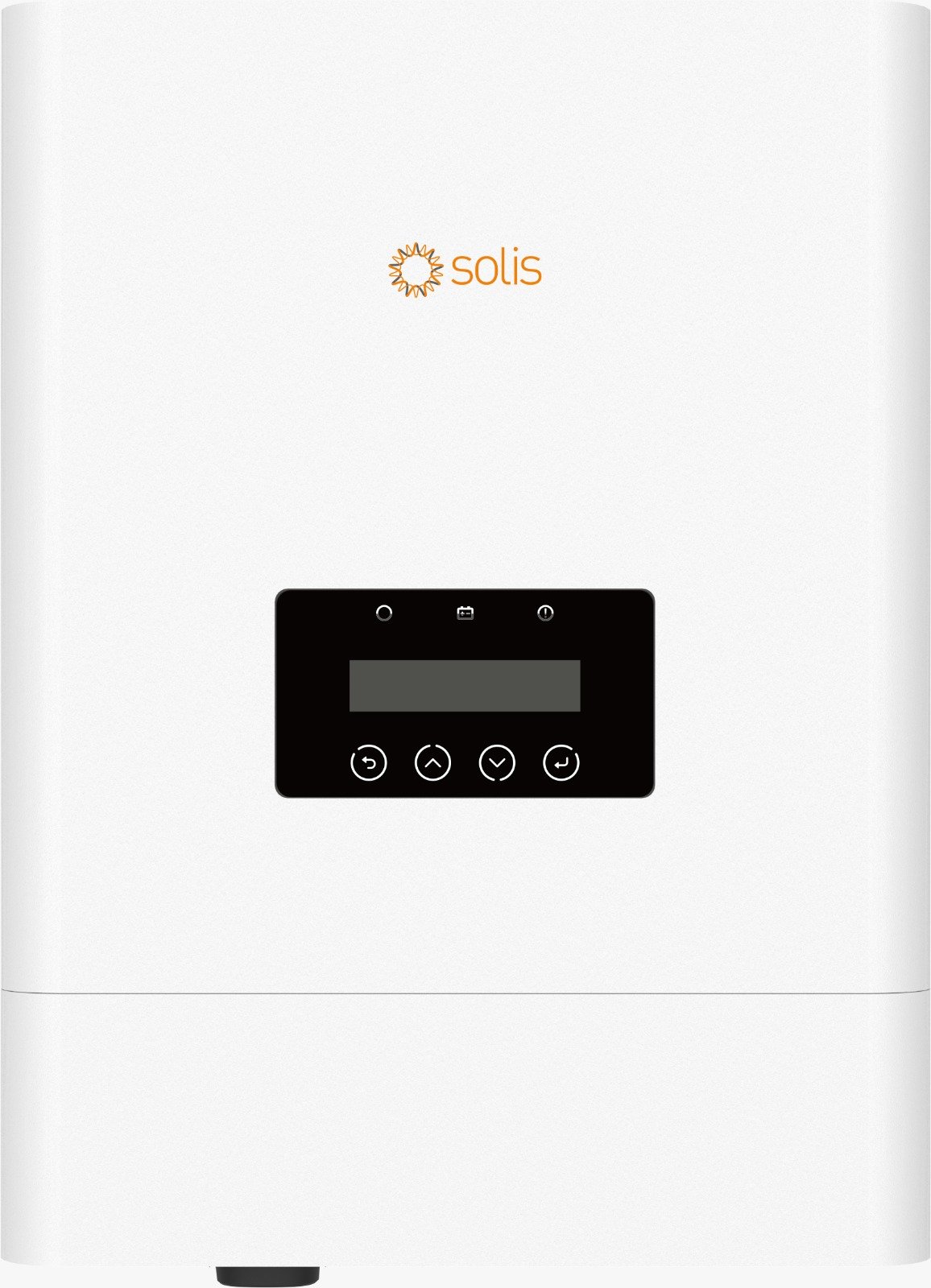

Solis 5kW Inverter S6-EH1P5K-L-Plus

Description

The Solis S6-EH1P5K-L-Plus is a high-performance, single-phase hybrid inverter designed to bridge the gap between solar generation, battery storage, and grid interaction. It is particularly well-regarded for its versatility in residential and small commercial setups where reliability and energy independence are priorities.
Below is a detailed technical description of the unit:
Core Functionality
This “Plus” model is a hybrid system, meaning it can manage power from solar panels, high-voltage or low-voltage battery systems (depending on specific regional compatibility), and the utility grid simultaneously.
Integrated UPS: It features a built-in Uninterruptible Power Supply (UPS) with a switching time of less than 10ms, ensuring that critical loads remain powered during a grid failure.
Off-Grid Capability: It can operate in full off-grid mode, providing a stable power supply even in areas with frequent load shedding or no grid access.

Feature Specification
Max. PV Input Power 8.0 kW
Rated Output Power 5.0 kW
Peak Apparent Power 10 kVA (for 10 seconds)
MPPT Trackers 2 Independent Trackers
Max. Input Current 16A (Compatible with high-power modules)
Battery Type Lithium-ion / Lead-acid (48V Low Voltage)
Max. Charge/Discharge 100A / 100A

Key Features & Advantages
1. Enhanced Efficiency & Design
MPPT Range: The dual MPPT design allows for flexible roof orientations, maximizing energy harvest even if parts of the solar array are shaded or facing different directions.
Cooling: It utilizes natural convection (fanless design in many environments), which reduces noise and increases the lifespan of the internal components.
2. Advanced Energy Management
Generator Integration: The “Plus” series includes multiple communication ports and an independent AC port for easy integration with diesel or petrol generators.
Peak Shaving: It can be programmed to discharge the battery during peak tariff hours to reduce electricity bills.
Net-Metering Ready: Fully compatible with smart meters for exporting excess energy back to the grid where regulations allow.
3. Safety and Protection
IP66 Rated: The casing is highly resistant to dust and water, making it suitable for both indoor and outdoor installations.
Integrated Protections: Includes DC reverse-polarity protection, short circuit protection, and integrated AFCI (Arc Fault Circuit Interrupter) to reduce fire risks.
4. Monitoring and Connectivity
The unit supports remote monitoring via the SolisCloud app. Users can track real-time energy production, consumption, and battery state-of-health through Wi-Fi, LAN, or 4G plug-in sticks.
