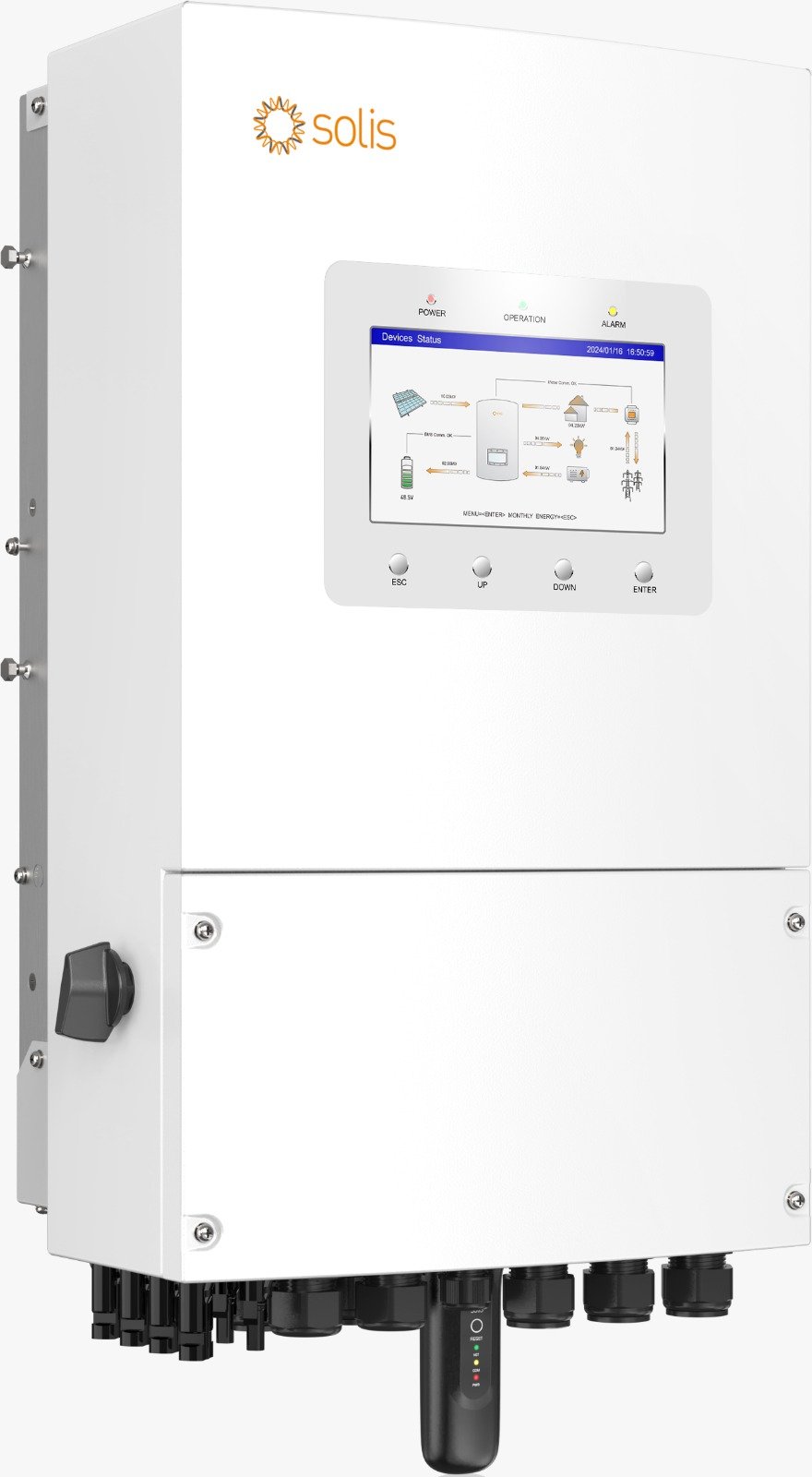

S6-EH1P6K-L-Plus Solis 6kW Inverter

Description

The Solis S6-EH1P6K-L-Plus is the higher-capacity sibling in the S6 series, providing 6kW of continuous power output. While it shares the same robust “Plus” architecture as the 5kW model, it offers a significant bump in throughput, making it ideal for homes with slightly higher peak demands or larger solar arrays.
The standout upgrade in this model is the 135A charge/discharge current, which allows you to move energy in and out of your battery bank much faster—perfect for handling sudden heavy loads or maximizing charging during short bursts of peak sunlight.
Technical Specifications

Feature Specification
Max. PV Input Power 9.6 kW / 12 kW (Depending on region)
Rated Output Power 6.0 kW
Peak Surge Power 12 kVA (for 10 seconds)
Max. Charge/Discharge Current 135A
MPPT Trackers 2 Independent Trackers
Switching Time < 10ms (UPS-grade)
Battery Voltage Range 40V – 60V (Low Voltage)

Key Improvements & Features
Higher DC/AC Ratio: You can “oversize” the solar array up to 160% (up to 9.6kW–12kW DC). This ensures that even on cloudy days, the inverter is still producing enough power to meet the 6kW AC demand and charge batteries simultaneously.
Enhanced Surge Capacity: It offers a 200% backup overload capability for 10 seconds. This is critical for starting inductive loads like water pumps, air conditioners, or large refrigerators that require a high “kick” of power to get running.
Intelligent Fan Cooling: Unlike the smaller units that are often purely natural convection, the 6kW model typically employs intelligent fan cooling to manage the extra heat generated by the higher current throughput, ensuring stable performance at high ambient temperatures.
Advanced Grid Support: It is designed to handle “weak” or unstable grids. It can inject or absorb reactive power to help stabilize local voltage sags or swells, which is a major advantage in areas with inconsistent utility power.
Paralleling Capability: Supports paralleling up to 6 units, allowing you to scale a residential system into a much larger commercial-grade setup (up to 36kW) if your energy needs grow.
Why choose the 6kW over the 5kW?
The 6kW model is the “sweet spot” for users who have a 48V battery bank and want to utilize the maximum possible charging speed (135A vs 100A). If you are running multiple high-drain appliances—like an electric oven and a borehole pump—the extra 1,000W of continuous headroom provides a much safer buffer to avoid tripping the inverter.
